Have a Complex Blast Room Challenge? Titan Can Solve It

One of the benefits of buying your blast room and other components from Titan Abrasive is that we can customize your system to suit your specific application or work environment.

In this piece, we detail five of the more complex customizations we’ve done for customers. Each customer had a specific requirement, which meant incorporating our engineering know-how, product and industry knowledge, and creative problem-solving.

Read through each case study and if you have a complex blast room challenge, call us. We can definitely work with you to provide a customized blast room system – on time and on budget.

Customer: U.S. Army

Application: A 20’W x 16’H x 55’L blast room and matching-sized paint booth installed end-to-end with drive-through capabilities

Constraint: Could only buy from a single source

Solution: Titan provided both the blast room and paint booth

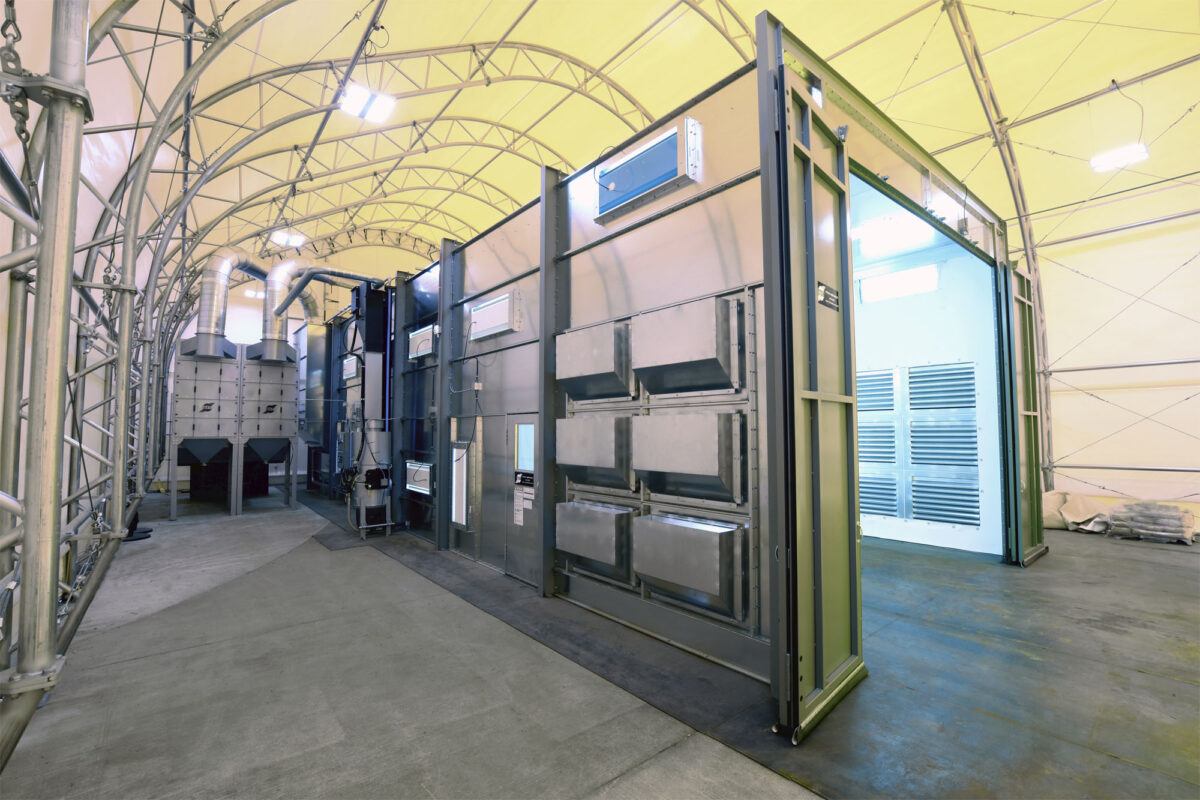

Titan Abrasive Industrial Blast Room

The U.S. Army blast room/paint booth with end-to-end drive-through doors.

Customer: GE Aerospace

Application: A large blast room for blasting jet engine components

Constraint: The customer required the use of virgin blast media and disposal of the spent media into super sacks. This meant they had to use new blast media on every component and dispose of the spent media immediately after blasting. Due to the large size and volume of components, blasting would generate a lot of spent media.

Solution: Titan chose to source a large industrial vacuum system rather than use one of our own recovery systems. This gave us the upper hand over the competition as most manufacturers only want to sell what they manufacture.

Here at Titan, our priority is to design the absolute best systems for customers’ needs – even if it means sourcing components from other manufacturers.

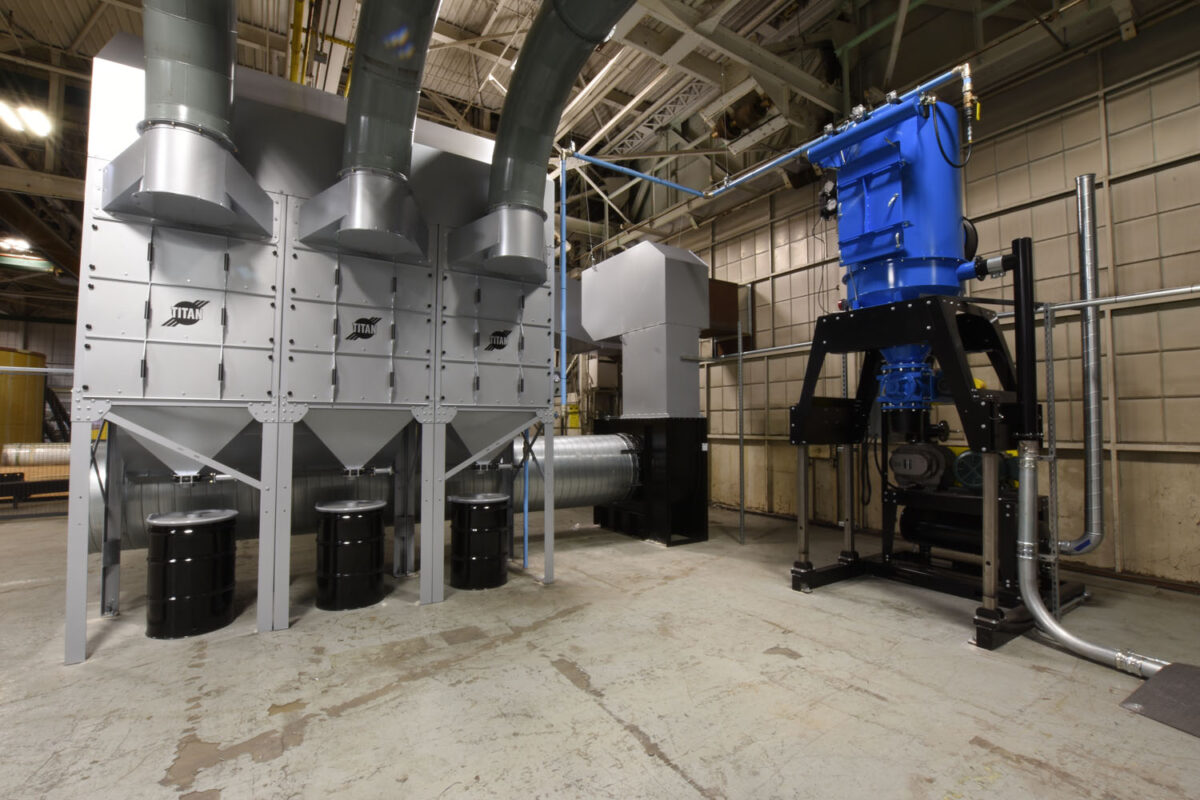

Titan Abrasive Dust Collector

The GE Aerospace Industrial Vacuum System

Customers: SeaCast & Ethos Energy

Application: Separate blast rooms and media for different components – for two different companies

Constraint: Both customers (two different companies) had the same exact challenge: due to cross-contamination issues, each one required separate blast rooms and recovery systems – and each had a tight budget.

Solution: In order to meet each customer’s budget, Titan designed two blast rooms with separate media recovery systems that could use a single dust collection system. To accomplish this, we designed and installed blast gates in the ducting coming off each recovery system to the dust collector.

We also took this approach one step further. In order to eliminate the possibility of operator error, we automated the blast gates via a single A/B selector switch on the control panel. The switch allowed the operator to simply select which blast room he would be working in.

Once selected, the blast gates automatically set to that room, closing off the other room and eliminating the possibility of closing both systems and dead-heading the dust collector.

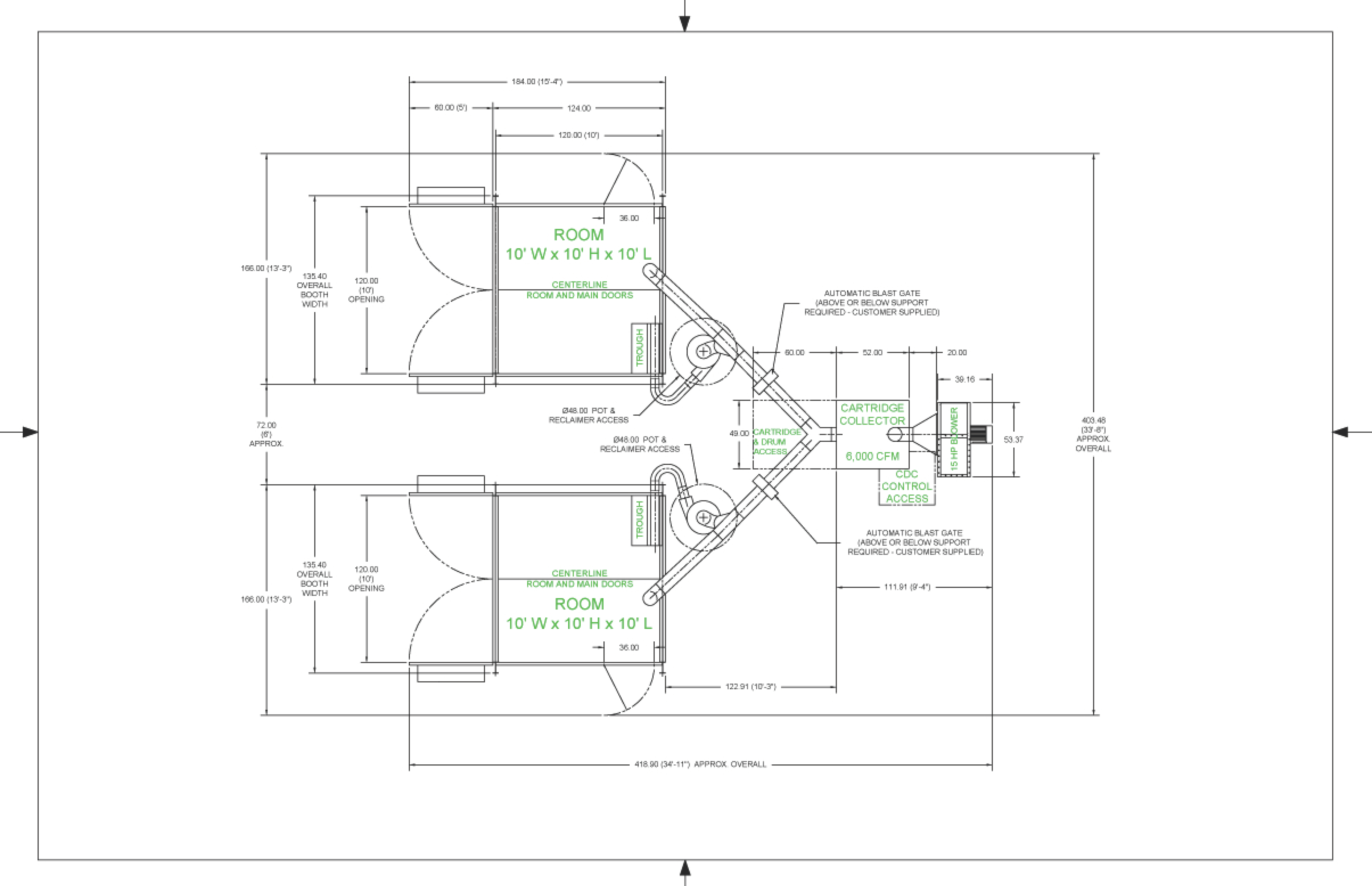

Engineered drawing showing separate blast rooms and recovery systems – and automatic blast gates.

Customer: Summit Metal Fabricators

Application: Dual media reclaim systems

Constraint: Similar to the SeaCast and Ethos Energy systems, Summit Metal Fabricators required two separate media recovery systems. However, they wanted to use them in the same blast room.

Solution: Titan designed custom ductwork with manual butterfly valves to control which recovery system was in use at any one time.

Summit Metal Fab

The Summit Metal Fabricators blast room. Note the manual butterfly valves on the ducting.

Customer: Painters Union

Application: A dual operator system for a training center

Constraint: The customer had a very small budget but needed a dual operator system with two separate blast machines. Typically, this can be a very pricey system.

Solution: Titan designed a custom diverter valve using our above-ground mechanical recovery system to allow the use of two separate blast machines. The diverter valve allowed the recycled media to be sent to either blast machine separately or split between the two.

The Painters Union dual blast machine system with diverter valve

Brandon Acker, Titan Abrasive

As CEO of Titan Abrasive, Brandon Acker oversees the design and manufacture of the company’s complete line of blast room / blast machine products for industrial applications.
